PP PE Film Washing Line Introduction:
The pp pe film washing line is widely is used to crush, wash, dewater, dry and recycle plastic films like agricultural film, printing film, garbage film, package film, shoping bag and so on. Fangsheng Machinery With complete film washing line, clients can make dry, clean film scraps from wasted material.
The whole film washing line could be “L” or “U” shape according clients’ workshop.
The last moisture of film washing line can be 3%-5%. Normally drying system moisture is about 10%-15%. And at the same time, our drying system can save about 60KW for you compare with the original drying system.
PP PE Film Washing Machine Application:
PP PE Film Washing Machine Video:
Learn more about YouTube’s film washing line

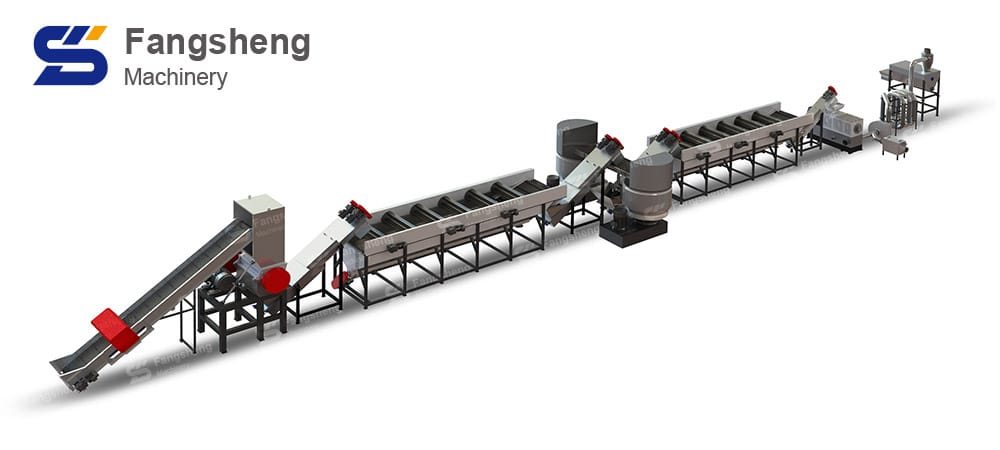

Complete Film Washing Line:
PP PE Film Washing Machine Technical Parameter:
| Name | Motor power (kw) | Dimension (mm) | Water consumption (T/H) | Stainless steel standard (mm) | Electric standard |
|---|---|---|---|---|---|
| Belt conveyor | 2.2 | 4500*690 | – | – | According to customers standard |
| Wet crusher | 75 | – | 2-4 | – | |
| Friction washer | 2.2*2 | 3000*300 | 1-2 | 3-5 | |
| Floating washer | 2.2*2+1.5 | 4500*1300 | 2-4 | 3-5 | |
| Screw conveyor | 2.2 | 2500*250 | 1-2 | 3-5 | |
| High-speed friction washer | 30 | – | 2-4 | 3-5 | |
| Screw converor | 2.2 | 2800*300 | 1-2 | 3-5 | |
| Dewatering machine | 75 | – | – | 5 | |
| Drying system | 36 | – | – | – | |
| Storage hopper for transition | – | – | – | – | |
| Drying system | 36 | – | – | – | |
| Storage hopper | 2.2*2 | – | – | – |
PP PE Film Washing Machine Detail:
High-speed Friction Washer
Crusher Machine
Dewatering Machine
