PET Bottle Washing Machine Advantages:
1. PET Bottle Washing Machine has good quality. When process PP PE film bags, final products humidity below 2-4%.
2. The Pet Washing Machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line.
5. The whole production line with CE certification, ISO9001 certification.
Feathers of PET Washing Machine:
1. PET recycling machine is mainly used for dealing with waste PET bottle, barrel etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.

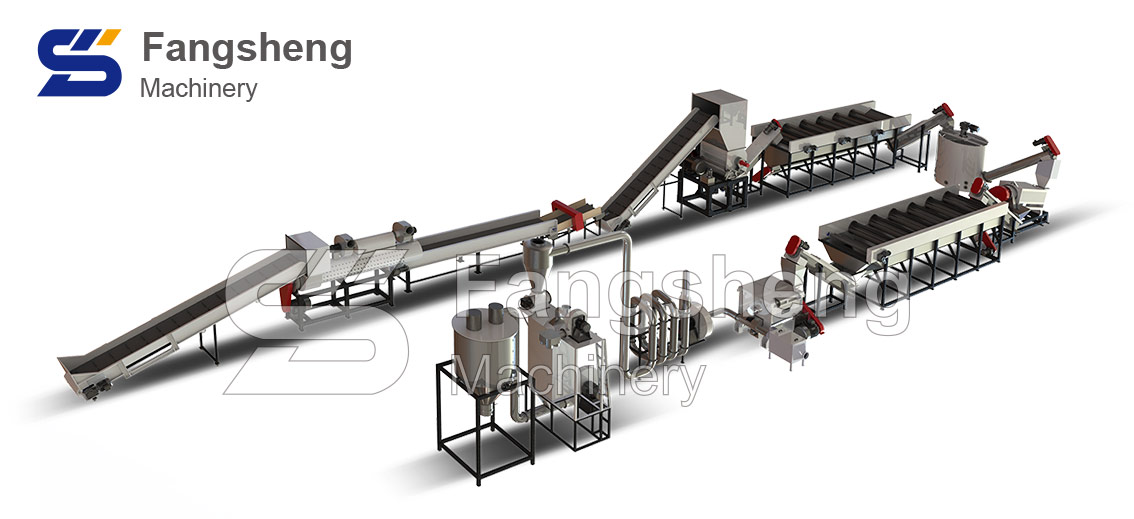

3. This PET Washing Machine is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate, Full automatic.
PET Bottle Machine Video:
PET Bottle Machine Detail:
PET Bottle Washing Machine Technical Parameter:
| Name | Motor power (kw) | Dimension (mm) | Water consumption (T/H) | Stainless steel standard (mm) | Electric standard |
|---|---|---|---|---|---|
| Belt conveyor | 2.2 | 3500*900*3000 | – | – | According to customers standard |
| Label scraping machine | 11 | 2600*1200*1800 | 0.6-1.0 | 3-5 | |
| Manual separating machine | 2.2 | 6000*800*1200 | – | – | |
| Metal detectory | 0.4 | 2200*1200*1500 | – | 3-5 | |
| Belt conveyer | 2.2 | 3500*900*3000 | – | – | |
| Crusher | 37 | 2200*2200*3000 | 0.6-1.0 | – | |
| Screw converor | 3 | 2800*800*2600 | – | 3-5 | |
| High speed friction washer | 30 | 3200*1400*2000 | 1-2 | 3-5 | |
| Screw conveyer | 3 | 2800*800*2600 | – | 3-5 | |
| Floating washer | 3*2 | 5200*1700*2200 | 0.5-1.5 | 3-5 | |
| Screw conveyer | 36 | 2800*800*2600 | – | 3-5 | |
| Steam washer | 7.5 | 1800*1800*2700 | 0.5-1.5 | 3-5 | |
| Screw conveyer | 3 | 2800*800*2600 | – | 3-5 | |
| Floating washer | 3*2 | 5200*1700*2200 | 0.5-1.5 | 3-5 | |
| Screw conveyer | 3 | 2800*800*2600 | – | 3-5 | |
| Dewatering machine | 5.5 | 800*2200*2200 | – | 5 | |
| Drying system | 11 | 3500*2200*2200 | – | 3-5 | |
| Label separater | 4 | 800*1100*3800 | – | – | |
| Storage hopper | – | 1500*1500*3800 | – | – | |
| Electric elements | – | 2000*450*1780 | – | – |
